BS EN 50149 / BBD 7267

Construction

• Shaped solid bare Copper (Brass Wire optional)

• BS EN 50149 • Patent 991480 • BBD 7267

Des

ign

Sta

ndard

Technical Features

• Superior Electrical Conductivity • High Mechanical Strength • Enhanced Wear & Abrasion Resistance • Optimized for High-Speed Systems • Long Service Life & Low Maintenance • Excellent Temperature & Environmental Resistance

Theft Deterrent Brass wire incorporated inside the copper shaped rod

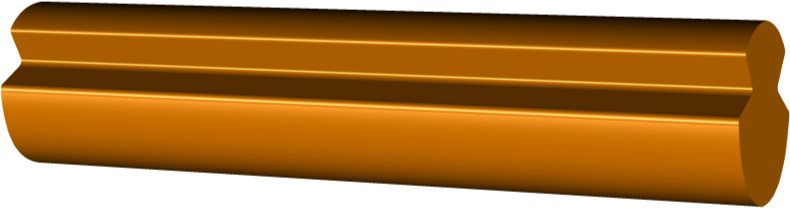

Copper Shaped solid bare copper

Manufactured in accordance with

Standards for Railway Contact wire

Railway Contact Wire

CONNECTING NATIONS

Sales Reference

• M-TEC is the main supplier of these contact wire to Transnet and Prasa

Properties

Application

• Overhead electric railway lines • High-speed train networks • Heavy-traffic railway sections • Metro & subway systems • Metro & subway systems • Freight rail electrification • Test tracks & depots • Urban trams & light rail

Corrosion Resistance The copper conductor is designed to resist oxidation and environmental degradation, ensuring reliable performance in humid, industrial, and outdoor railway environments.

High Conductivity Optimized copper composition provides excellent electrical conductivity, minimizing energy loss and improving system efficiency.

Extended Service Life Mechanically and chemically robust design ensures long-term performance with minimal maintenance, even under heavy traffic and harsh weather conditions.

Use in Multi Applications Suitable for high-speed lines, urban trams, freight, metro systems, and test tracks, supporting diverse railway electrification needs.

Mechanical Strength Designed to withstand high tension, pulling, and dynamic loads, ensuring safe and reliable operation over the wire’s lifespan.

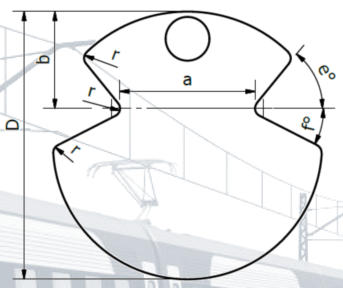

Diameter (sqmm) 80 107 161 107 161

Product Description Shaped solid bare Copper (Brass wire Incorporated) Shaped Solid bare Copper Magnesium (CuMg0.2)

Specification BS EN 50149 / BBD 7267 BS EN 50149 / BBD 7267

Packing Drum dimensional data:

Flange: 1650–2000 mm | Barrel: 2200 mm | Width: 900 mm | Conductor length: 3000 mm

Call or email us to order
